2000H Double Door @ A Glance
Introduction @ A Glance
Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book. It has survived not only five centuries

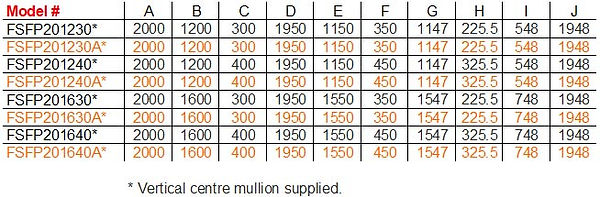

Dimensions @ A Glance
The dimensions / accessories below apply to the following model # / enclosure sizes:
-FSFP201230
-FSFP201230A
-FSFP201240
-FSFP201240A
-FSFP201630
-FSFP201630A
-FSFP201640
-FSFP201640A
2000H x 1200W x 300D mm Frame, Kit, 2 doors*, 2 Mtg Plts, 100mm Plinth, RAL 7032
2000H x 1200W x 300D mm Frame, Kit, 2 doors*, 2 Mtg Plts, 100mm Plinth, RAL 2000
2000H x 1200W x 400D mm Frame, Kit, 2 doors*, 2 Mtg Plts, 100mm Plinth, RAL 7032
2000H x 1200W x 400D mm Frame, Kit, 2 doors*, 2 Mtg Plts, 100mm Plinth, RAL 2000
2000H x 1600W x 300D mm Frame, Kit, 2 doors*, 2 Mtg Plts, 100mm Plinth, RAL 7032
2000H x 1600W x 300D mm Frame, Kit, 2 doors*, 2 Mtg Plts, 100mm Plinth, RAL 2000
2000H x 1600W x 400D mm Frame, Kit, 2 doors*, 2 Mtg Plts, 100mm Plinth, RAL 7032
2000H x 1600W x 400D mm Frame, Kit, 2 doors*, 2 Mtg Plts, 100mm Plinth, RAL 2000
2000H Accessories @ A Glance
Apart from an extensive range of complementary components. the following specific standard enclosure accessories are available to suit the FSFP Range of enclosures.
Accessory selection is available when we check pricing and availability.
Door Handles / Inserts
The 2000H enclosure doors are fitted with (3) three industry standard "double bit" lock inserts and a "tool" key to suit.
These may be replaced if required with a 3-Point locking system (see below) or the following handle / insert types:
Triangular lock insert, 8mm, Stainless Steel
Insert, Knob lock, Steel
T-Handle, non-locking
T-Handle, keyed alike (non-specific)
T-Handle, Keyed CL001
T-Handle, Keyed 92268
L-Handle, Keyed CL001
L-Handle, Padlockable
Swing Handle, Padlockable
Swing Handle, keyed NSW PWD E
3 Point lock system
To suit 2000H enclosure doors, supply includes blanking plugs, rod captures & a keyed T-Handle (generic).
Handles above may be used with the 3PL system.
Wall Mounting brackets
Supplied as a pack of ??????
Typicall used for ??????
