1600H Double Door @ A Glance
Features @ A Glance
​
The FSFP Series of enclosures are designed for the housing of electrical switchgear, reticulation & protection devices, control & indication components.
They are IP40 rated and ideal for installation in covered & dust free environments. Higher IP rated free standing enclosure solutions are available on request. Please contact us with your requirements.
They are supplied in a "flat pack" / self assembly" format from a range of standard components.
The standard "kit" includes includes all parts required to build an enclosure, I.E. frame profiles, 100mm plinth components, a flat gland plate, doors, rear panels & mounting plates + hand tools to suit frame, plinth & panels.
​
The modularity of the system allows for advanced enclosure configurations including partial doors, compartments, cable zones & other forms of internal segregation.
​
Additional hand / blade tools are available as accessories.
​
Each door is fitted with 3 industry standard double bit inserts for locking with other locking variants additionally available.
The enclosure systems are epoxy powder coated (smooth) as standard in RAL 7032 Grey or Electrical Orange RAL 2000.
​
An extensive range of complementary components are available and we invite you to check out some project examples here.
Dimensions @ A Glance
​

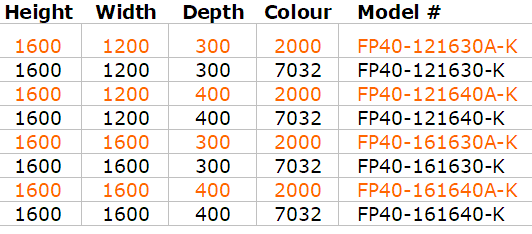

The dimensions / accessories below apply to the following model # / enclosure sizes:
Each kit includes frame, 2 doors*, 100mm plinth, 2 mounting plates, side & rear panels, 1 off XXX round ball head screw driver.
* Please specify Central mullion or overlapping doors.

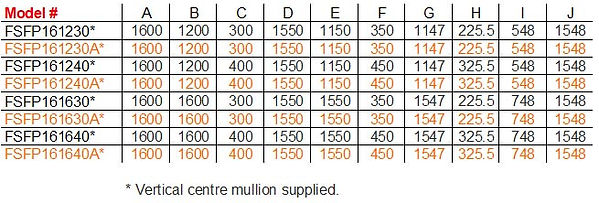

Dimensions Details@ A Glance
Supply includes @ A Glance
​
- 100mm H plinth 2mm "RAL9005 Black" components & fixing accessories
- Pre-punched & indexed frame profiles & fixing accessories.
- Flush 1.5mm top, side & rear panels
- 1.5mm Doors with 3 locking points per door.
- Note: Door(s) & Rear panel(s) account for 50mm (25mm each) of the overall depth.
- Vertical front & rear mullions
- 3mm Internal mounting plates.
​
Accessory selection (see below) is available when we check pricing and availability.
1600H Accessories @ A Glance
​
Apart from an extensive range of complementary components. the following specific standard enclosure accessories are available to suit the FSFP Range of enclosures.
​
Accessory selection is available when we check pricing and availability.
Door Handles / Inserts
​
The 1600H enclosure doors are fitted with (3) three industry standard "double bit" lock inserts and a "tool" key to suit.
​
These may be replaced if required with a 3-Point locking system (see below) or the following handle / insert types:
Triangular lock insert, 8mm, Stainless Steel
Insert, Knob lock, Steel
T-Handle, non-locking
T-Handle, keyed alike (non-specific)
T-Handle, Keyed CL001
T-Handle, Keyed 92268
L-Handle, Keyed CL001
L-Handle, Padlockable
Swing Handle, Padlockable
Swing Handle, keyed NSW PWD E
3 Point lock system
​
To suit 1600H enclosure doors, supply includes blanking plugs, rod captures & a keyed T-Handle (generic).
​
Handles above may be used with the 3PL system.
Wall Mounting brackets
​
Supplied as a pack of ??????
​
Typicall used for securing the enclosure.
