RJ Slim line relays
+ Model #'s...
+ Model #'s...
Features:
- Compact and rugged relays. Large
switching capacity.
- Compact housing 12.7mm wide.
- Large contact rating.
- RJ1 (1 - pole): 12 Amps.
- RJ2 (2 - pole): 8 Amps.
- Non - polarized LED.
- Excellent electrical life.
Electrical life: 200,000 operation (AC load).
Mechanical life: 30 million operation (AC coil).
- Contact Material: Silver - Nickel alloy.

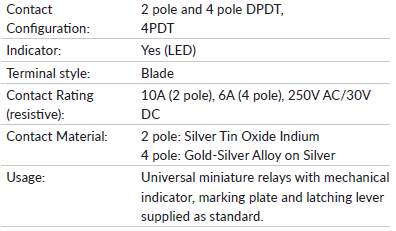

RU / RN Universal Relays
Features:
- Full featured universal miniature relays.
- Designed with environment taken into
consideration.
- Two terminal styles: plug-in and PCB mount.
- Non-polarized LED indicator.
- No internal wires, lead-free construction.
- Cadmium-free contacts.
- Mechanical flag indicator.
- Manual latching lever with colour coding for
AC or DC coil.
- Snap-on yellow marking plate; optional marking
plates are available in four other colours.
- RU2 (2 - pole): 10 Amps.
- RU4 (4 - pole): 6 Amps.
- RN2 (2 - pole): 5 Amps.
- RN4 (4 - pole): 3 Amps.
RH1 & 2 Compact Relays
Features:
- SPDT through 2PDT, 10A contacts.
- Compact power type relays.
- 10A contact capacity.
- Compact size saves space.
- High switching capacity.
- Blade style terminals.
- DIN rail or surface mount base.
RH3 & 4 Compact Relays
Features:
- 3PDT through 4PDT, 10A contacts.
- Compact power type relays.
- 10A contact capacity.
- Compact size saves space.
- High switching capacity.
- Blade style terminals.
- DIN rail or surface mount base.
